Frameless All Glass Doors and Styles

PRL Glass Systems, Inc. manufactures many standard and custom Tempered Frameless All Glass Entrance Door Styles. We carry a wide selection of rail styles and patch fitting for all our all glass doors. The beauty of glass entrances, commonly referred to as "all glass doors", is that they appear frameless, allowing for maximum vision and minimal obstruction to your building entry. Our Tempered All Glass Doors can be made with 3/8", 1/2", 5/8" or 3/4" heavy tempered glass or tempered laminated glass.

PRL offers Complete Systems, packages including all door hardware and framing (we are your one stop shop!). Choosing all glass door design and style depends on many factors like aesthetics, meeting ADA code, hardware requirements or whether it’s for an exterior or interior application.

Styles to fit the most sophisticated Frameless Heculite Door Designs.

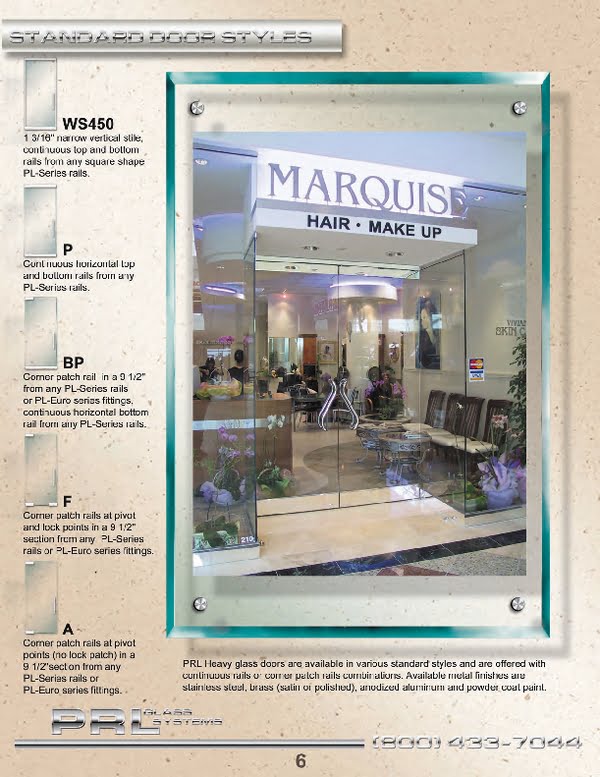

The Most Common Glass Door Styles:

P-Style All Glass Door

Continuous horizontal top and bottom rails from any PL-Series rails (3-3/8″ tall to 10″ tall, and custom).

BP- Style All Glass Door

Corner patch rail in a 9-1/2″ section from any PL-Series rails or PL-Euro series patch fittings (2″ x 6-1/2″) located at top pivot corner, with continuous horizontal bottom rails from any PL-Series Rails.

F-Style All Glass Door

Patch rails at top and bottom pivot corners and at one leading corner of the door for accommodating a lock in a 9-1/2″ section from any PL-Series rails or PL-Euro Series fittings.

A-Style All Glass Door

Corner patch rails at top and bottom pivot corners (no lock fitting) in a 9-1/2″ section from any PL-Series rails or PL-Euro Series fittings.

WS450-Style All Glass Door

1-3/16″ narrow vertical stile “I-Line” door with continuous top and bottom rails from any PL-series rails.

Available Metal finishes:

  • Stainless steel (brushed #4 or polished #8)
  • Brass (satin or polished)
  • Anodized aluminum (clear & bronze)
  • Custom Powder Coat or Kynar Paint

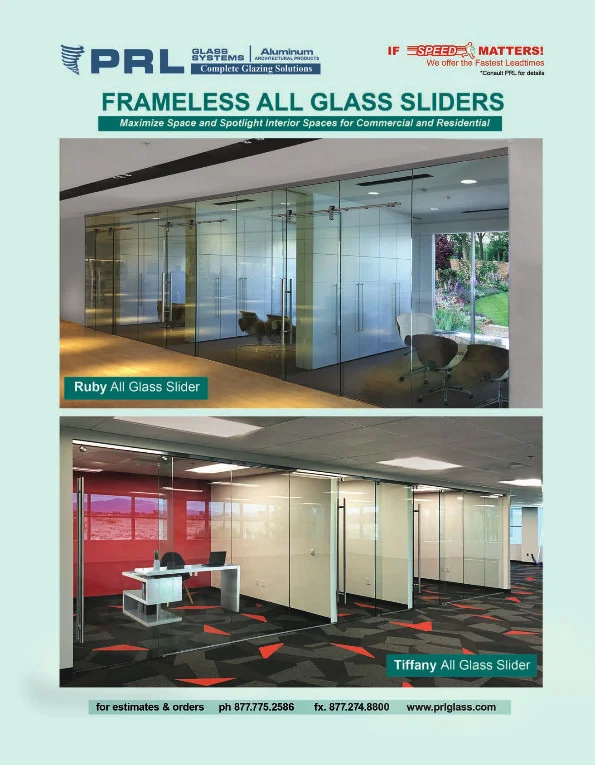

2019 All-Glass Sliders Catalog

2019 All-Glass Sliders Catalog

2019 Max Sliding Glass Door Catalog

2019 Max Sliding Glass Door Catalog

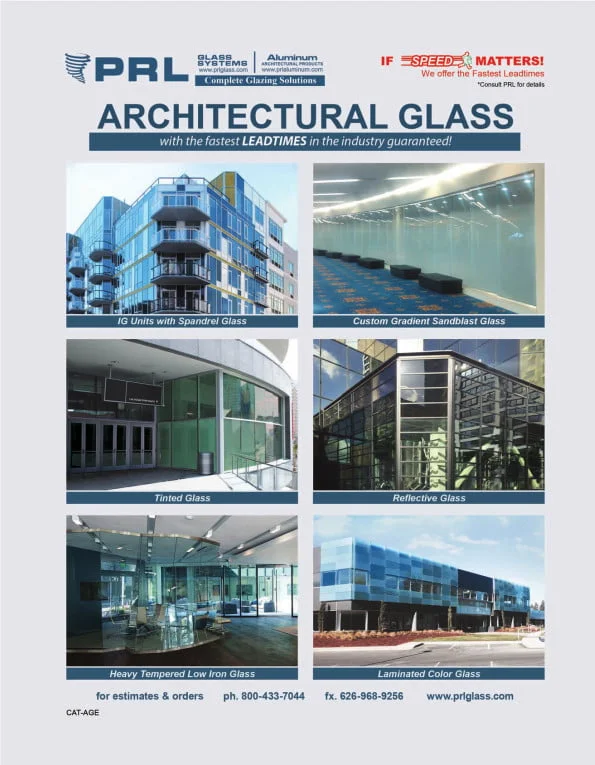

2018 Architectural Glass Catalog

2018 Architectural Glass Catalog

2016 Aluminum Storefronts Catalog

2016 Aluminum Storefronts Catalog

For Complete Frameless All Glass Door Specifications, Estimates and Orders
Please Feel Free to Contact Us Directly
Toll Free (800) 433-7044

All-Glass Door Samson Patch Closer – Fitting & Closer Combo? How Does It Work?

All-Glass Door Samson Patch Closer

PRL’s All-Glass Door Samson Patch Closer makes installation simple. A great alternative to overhead and traditional floor spring closers, this hydraulic Euro hardware is a reliable patch fitting and a closer all-in-one. Made for interior pivoting all-glass entries, they’re mounted without a concrete recess, so you don’t have to core out the floor. Read on to learn how our Samson Read More...

PRL’s New Digital Handrail Catalog. Systems, Components, Gates & More!

handrail catalog

Download PRL’s new Digital Handrail catalog! Find out everything you need to know about our systems, components, protective shields and more. Including our entire inventory of railing products, this catalog is a must-have. Loaded with tons of great info, specs and photos, you’ll be on your way to designing fabulous projects for your customer’s home or office in no time. Read More...
