Panic Doors & Glass Types

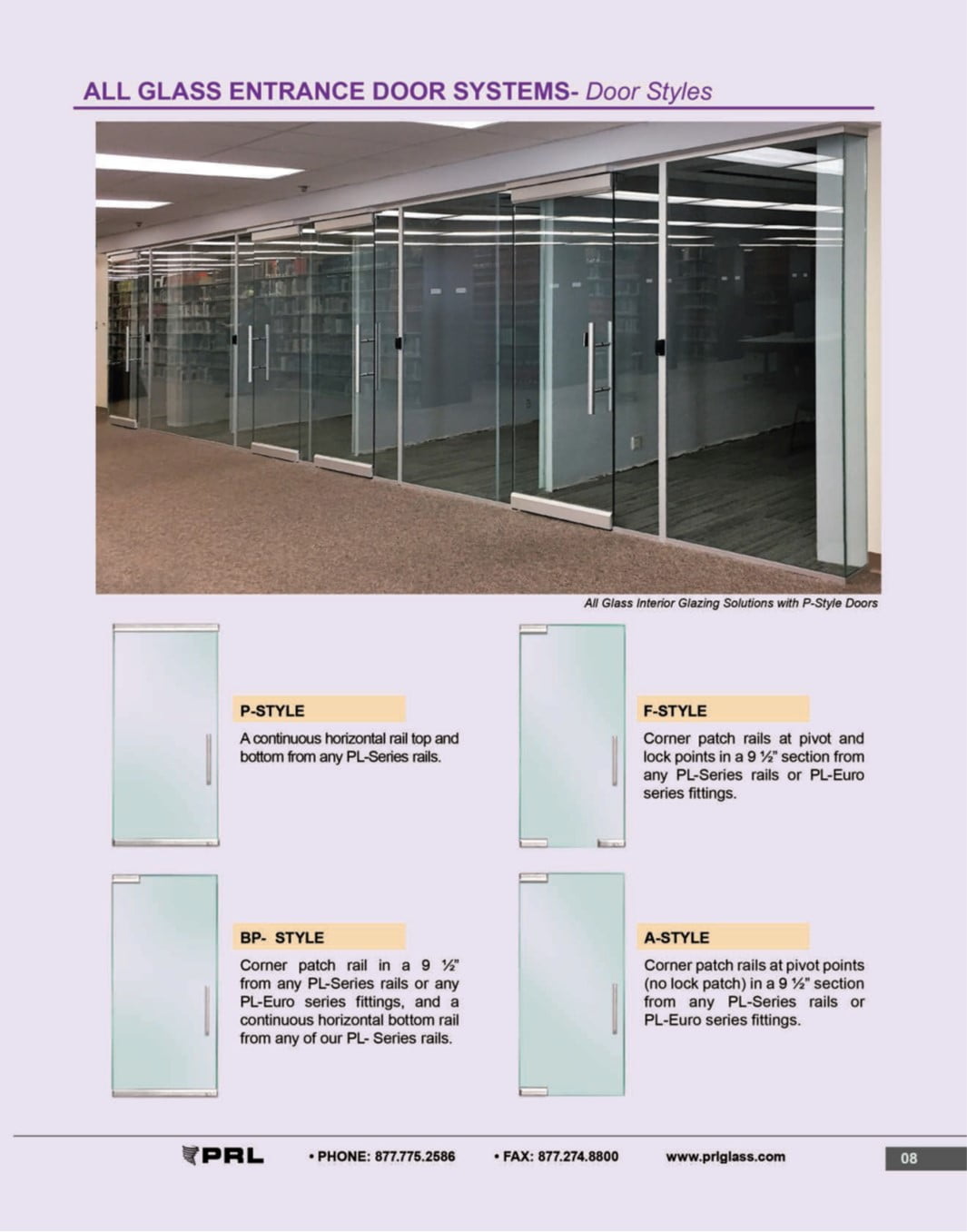

Panic Doors: 4 All-Glass Styles
PRL offers a selection of four all-glass doors to design radiant and secure heavy glass door panic systems. Available with continuous top and bottom door rails and a variety of patch fittings, we have a glass door style to meet your evacuation exit needs.
Fit with discreet hardware, our heavy all-glass doors provide a frameless appearance with fewer visual obstructions to distract from emergency egresses. Now specifiers and architects can design panic doors with beautiful, expansive all-glass views.
P Style All-Glass Door:
The P style door offers continuous horizontal top and bottom rails measuring 3 3/8″ to 10″ tall. Custom height applications can be accommodated.
BP Style All-Glass Door:
The BP style door offers a corner patch rail in a 9 ½” long section or a Euro series patch fitting measuring 2″ x 6 ½”. Euro patch fittings are located at the top pivot corner and include a continuous horizontal bottom rail.
F Style All-Glass Door:
The F style door offers a 9 ½” patch rail at the top and bottom pivot corners and at the bottom leading corner of the door. It accommodates a lock or a Euro series patch fitting at the top and bottom pivot corners with Euro patch locks.
A Style All-Glass Door:
The A style door offers corner patch rails at the top and bottom pivot corners with a 9 ½” patch rail, a custom patch rail, or a Euro series patch fitting. Lock fittings are not included.

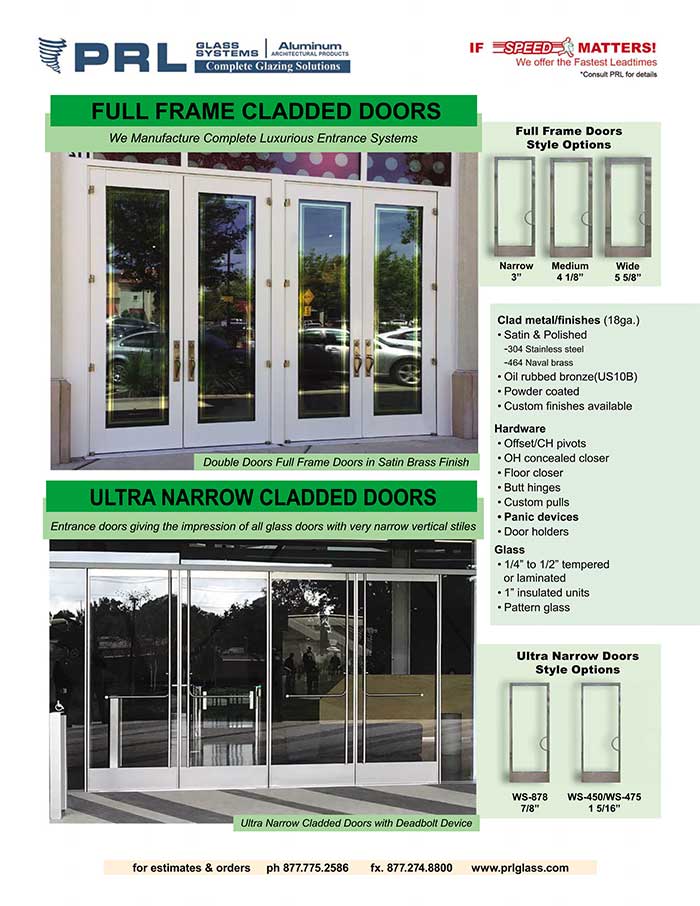

Panic Doors: 3 Full Framed Cladded Stiles
Our full framed clad doors enable specifiers and architects to design emergency exits with maximum visibility and a clean, minimal seam look. Constructed with minimal seams and custom extrusions without visible glass stops, our full framed clad doors are designed with visible seams where stiles are joined with top and bottom rails.
Perfect for commercial building envelopes, PRL’s full framed clad doors are available in an assortment of standard top and bottom rails. For improved weather control, adjustable weather stripping is used in all vertical stiles.
3″ Narrow Stile Full Framed Clad Door:
A 3″ vertical stile full framed clad door with 4″, 5″ or 10″ standard top and bottom rails. Custom height top and bottom rails can be fabricated to your specifications.
4″ Medium Stile Full Framed Clad Door:
A 4″ vertical stile full framed clad door with 4″, 5″ or 10″ standard top and bottom rails. Custom height top and bottom rails can be fabricated to your specifications.
5 ½” Wide Stile Full Framed Clad Door:
A 5 ½” vertical stile full framed clad door with 5″ or 10″ standard top and bottom rails. Custom height top and bottom rails can be fabricated to your specifications.
Panic Doors: 2 Ultra-Narrow Full Framed Cladded Stiles
Our ultra-narrow full framed cladded doors deliver even broader glass views for panic systems. And accommodating extra tall accessways, these aluminum doors are built with the same great features as our other cladded stiles.
You can quote these ultra-narrow doors with a variety of customizations to meet your fire egress needs. We can render made-to-order rail heights and stile sizes as well as grids and flush metal panels to your exact specifications.
7/8″ Ultra-Narrow Full Framed Clad Door:
A 7/8″ ultra-narrow vertical stile full framed clad door with 4″, 5″ or 10″ standard top and bottom rails. Custom height top and bottom rails can be fabricated to your specifications.
1 15/6″ Ultra-Narrow Full Framed Clad Door:
A 1 5/6″ ultra-narrow vertical stile full framed clad door with 4″, 5″ or 10″ standard top and bottom rails. Custom height top and bottom rails can be fabricated to your specifications.
Full Framed & Ultra Narrow Cladded Door Finishes:
- Brushed & polished stainless steel
- Oil rubbed bronze
- Kynar paints
- Satin & polished brass
- Powder coats
- Custom finishes

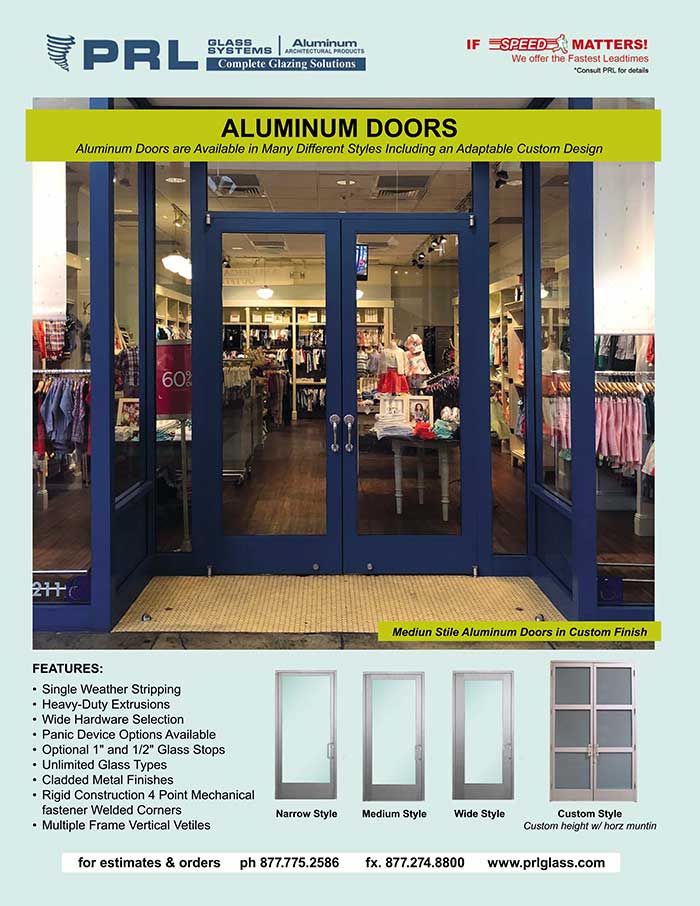

Panic Doors: 4 Aluminum Stiles
We furnish four aluminum door stiles for heavily trafficked evacuation exits. Generated with 6063-T5 aluminum alloy and strong, reinforced corner construction, our aluminum doors can stand up to whatever you deliver. Sold as single or double passageways, these aluminum doors come standard with 10″ bottom rails to meet ADA regulations.
Our aluminum doors are available with offset pivots, butt hinges or center pivot operations. To satisfy your emergency egress conditions, you can also bid custom top and bottom rail sizes, widths or heights.
2″ Narrow Stile Aluminum Door:
A 2″ vertical stile aluminum door with 2″, 3 ¼”, 5 1/8″, 10″ or custom top and bottom rails. Custom height top and bottom rails can be fabricated to your specifications.
3 ½” Medium Stile Aluminum Door:
A 3 ½” vertical stile aluminum door with 3 ¼”, 5 1/8″, 10″ or custom top and bottom rails. Custom height top and bottom rails can be fabricated to your specifications.
5″ Wide Stile Aluminum Door:
A 5″ vertical stile aluminum door with 5 1/8″, 10″ or custom top and bottom rails. Custom height top and bottom rails can be fabricated to your specifications.
Oversized Aluminum Door Stiles:
An oversized aluminum door with stiles produced to your measurements. Custom top and bottom rails also extruded per your plans. Please consult with us. Custom limitations may apply.
Aluminum Door Finishes:
- Clear anodized
- Dark brown anodized
- Custom cladded brass
- Kynar paints
- Custom cladded stainless steel
- Powder coats
Panic Doors: Custom All-Glass, Full Framed & Aluminum
We produce an infinite selection of custom all-glass, full framed and aluminum doors for panic systems. Utilizing our cutting-edge technology and extensive glazing, extruding and machining capabilities, we’re the go-to source for specifiers and architects. Designing products that combine premium quality glass with the finest metal is our specialty.
Custom Glass & Aluminum Fabrications
- Infinite laminated & spandrel colors
- Textured glass panels
- Made-to-order glue chipped patterns
- Custom sandblasted graphics, logos & more
- Oversized glass panels
- Metal infill panels
- Custom metal stamped patterns
- Intermediate vertical & horizontal mullions
- Custom length door rails & sidelites
- Specialized headers & thresholds

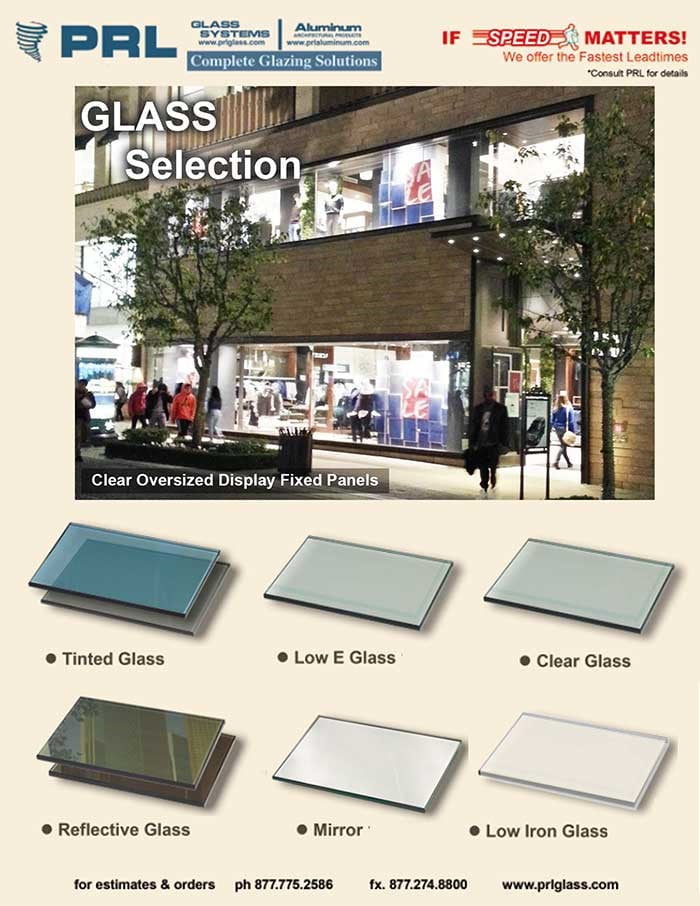

Glass Types: Functional, Decorative & High Performance
Whether your panic system requires a functional, decorative or high performance glass type, PRL offers an unlimited selection to choose from. Fabricating all glass types in-house, our impressive glazing capabilities enable us to produce infinite glass designs, expressions and layouts enabling specifiers and architects to create inspiring emergency exit systems.
Glass Types & Thicknesses:
Functional Glass Types:
- Clear annealed & tempered
- Clear laminated PVB’s
- Low iron glass panels
- Switch-It Privacy glass
High Performance Glass Types:
- IG units & low E
- Sound control & SentryGlas®
- Bullet & fire resistant
- Tinted & reflective
Decorative Glass Types:
- Mirrored & textured
- Spandrel & laminated colors
- Decorative interlayer patterns
- Glue chipped & sandblasted graphics
Available Glass Thicknesses:
- All-Glass Doors: ½”, 5/8″ & ¾”
- Full Framed Cladded Doors: ¼” – 1 ¼”
- Ultra-Narrow Cladded Doors: ½” – ¾”
- Aluminum Doors: ¼” – 1″
Panic Doors & Glass Types. Find A Huge Collection at PRL!
Find panic doors and glass types galore at PRL Glass & Aluminum! Rending a huge array for emergency egresses, we’re the place to shop!
